Utilizing curiously recurring template pattern (CRTP) More...

#include <lib/container/include/ufo/container/tree/tree.hpp>

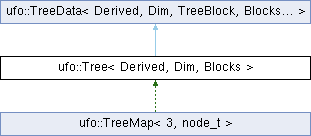

Inheritance diagram for ufo::Tree< Derived, Dim, Blocks >:

Classes
struct	is_node_type

struct	TraceParams

struct	TraceStackElement

Public Types
using	Bounds = AABB< Dim, coord_type >

using	Code = TreeCode< Dim >

using	code_type = typename Code::code_type

using	const_iterator = TreeIterator< Derived >

using	const_nearest_iterator = TreeNearestIterator< Derived >

template<class Geometry >
using	const_nearest_iterator_geom = TreeNearestIterator< Derived, Geometry >

using	const_query_iterator = TreeQueryIterator< Derived >

template<class Predicate >
using	const_query_iterator_pred = TreeQueryIterator< Derived, Predicate >

using	const_query_nearest_iterator = TreeQueryNearestIterator< Derived >

template<class Predicate , class Geometry >
using	const_query_nearest_iterator_pred_geom = TreeQueryNearestIterator< Derived, Predicate, Geometry >

template<class Geometry >
using	ConstNearest = IteratorWrapper< const_nearest_iterator_geom< Geometry >, const_nearest_iterator >

template<class Predicate >
using	ConstQuery = IteratorWrapper< const_query_iterator_pred< Predicate >, const_query_iterator >

template<class Predicate , class Geometry >
using	ConstQueryNearest = IteratorWrapper< const_query_nearest_iterator_pred_geom< Predicate, Geometry >, const_query_nearest_iterator >

using	Coord = TreeCoord< Dim, coord_type >

using	coord_type = float

using	depth_type = std::uint32_t

using	Index = TreeIndex

using	Key = TreeKey< Dim >

using	key_type = typename Key::key_type

using	Length = Vec< Dim, length_type >

using	length_type = double

using	Node = TreeNode< Dim >

using	offset_type = typename Index::offset_type

using	Point = Vec< Dim, coord_type >

using	pos_type = typename Index::pos_type

using	Ray = ufo::Ray< Dim, coord_type >

using	TraceResult = ufo::TraceResult< Dim >

Public Types inherited from ufo::TreeData< Derived, Dim, TreeBlock, Blocks... >
using	Index = TreeIndex

using	InnerData = TreeContainer< typename Ts::template InnerBlock< Dim, BF >... >

using	LeafData = TreeContainer< typename Ts::template LeafBlock< Dim, BF >... >

using	pos_type = Index::pos_type

Public Member Functions
template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
auto	ancestor (NodeType node, depth_type depth) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
auto	ancestorChecked (NodeType node, depth_type depth) const

const_iterator	begin (bool only_leaves=true, bool only_exists=true) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
const_iterator	begin (NodeType node, bool only_leaves=true, bool only_exists=true) const

template<class Geometry >
const_nearest_iterator_geom< Geometry >	beginNearest (Geometry const &geometry, double epsilon=0.0, bool only_leaves=true, bool only_exists=true) const

template<class NodeType , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
const_nearest_iterator_geom< Geometry >	beginNearest (NodeType node, Geometry const &geometry, double epsilon=0.0, bool only_leaves=true, bool only_exists=true) const

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
const_query_iterator_pred< Predicate >	beginQuery (NodeType node, Predicate const &pred, bool only_exists=true, bool early_stopping=false) const

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
const_query_iterator_pred< Predicate >	beginQuery (Predicate const &pred, bool only_exists=true, bool early_stopping=false) const

template<class NodeType , class Predicate , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
const_query_nearest_iterator_pred_geom< Predicate, Geometry >	beginQueryNearest (NodeType node, Predicate const &pred, Geometry const &geometry, double epsilon=0.0, bool only_exists=true, bool early_stopping=false) const

template<class Predicate , class Geometry , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
const_query_nearest_iterator_pred_geom< Predicate, Geometry >	beginQueryNearest (Predicate const &pred, Geometry const &geometry, double epsilon=0.0, bool only_exists=true, bool early_stopping=false) const

constexpr pos_type	block () const noexcept
	Returns the block position of the root node.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
pos_type	block (NodeType node) const
	Returns the block position of `node`.

Bounds	bounds () const
	Returns the bounds of the tree (/ root node).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Bounds	bounds (NodeType node) const
	Returns the bounds of `node`.

Coord	center () const
	Returns the center of the tree (/ root node).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
constexpr Coord	center (NodeType node) const
	Returns the center of `node`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
coord_type	centerAxis (NodeType node, std::size_t axis) const
	Returns the center of `node` for the `axis` specified.

coord_type	centerAxis (std::size_t axis) const
	Returns the center of the tree (/ root node) for the `axis` specified.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
std::optional< coord_type >	centerAxisChecked (NodeType node, std::size_t axis) const
	Returns the center of `node` for the `axis` specified, if the node is valid (i.e., `valid(node)`).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
std::optional< Coord >	centerChecked (NodeType node) const
	Returns the center of `node` if the node is valid (i.e., `valid(node)`).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
constexpr auto	child (NodeType node, offset_type offset) const
	Returns the `i`:th child of `node`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
auto	childChecked (NodeType node, offset_type offset) const
	Get a child of a node with bounds checking.

pos_type	children (Index node) const

std::array< pos_type, BF > const &	children (pos_type block) const

void	clear ()
	Erases all nodes from the tree.

void	clear (Length const &leaf_node_length, depth_type num_depth_levels)

void	clear (length_type const &leaf_node_length, depth_type num_depth_levels)

Code	code () const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Code	code (NodeType node) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
std::optional< Code >	codeChecked (NodeType node) const

template<class ExecutionPolicy , class RandomIt , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>
std::vector< Index >	create (ExecutionPolicy &&policy, RandomIt first, RandomIt last)

template<class ExecutionPolicy , class RandomIt1 , class RandomIt2 , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>
RandomIt2	create (ExecutionPolicy &&policy, RandomIt1 first, RandomIt1 last, RandomIt2 d_first)

template<class ExecutionPolicy , class Range , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true, std::enable_if_t<!is_node_type_v< Range >, bool > = true>
std::vector< Index >	create (ExecutionPolicy &&policy, Range const &r)

template<class ExecutionPolicy , class Range , class RandomIt , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true, std::enable_if_t<!is_node_type_v< Range >, bool > = true>
RandomIt	create (ExecutionPolicy &&policy, Range const &r, RandomIt d_first)

template<class InputIt >
std::vector< Index >	create (InputIt first, InputIt last)

template<class InputIt , class OutputIt >
OutputIt	create (InputIt first, InputIt last, OutputIt d_first)

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Index	create (NodeType node)

template<class Range , std::enable_if_t<!is_node_type_v< Range >, bool > = true>
std::vector< Index >	create (Range const &r)

template<class Range , class OutputIt , std::enable_if_t<!is_node_type_v< Range > &&!execution::is_execution_policy_v< Range >, bool > = true>
OutputIt	create (Range const &r, OutputIt d_first)

depth_type	depth () const
	Returns the depth of the root node, i.e. `numDepthLevels() - 1`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
constexpr depth_type	depth (NodeType node) const
	Returns the depth of the node.

depth_type	depth (pos_type block) const
	Returns the depth of the block.

const_iterator	end () const

const_nearest_iterator	endNearest () const

const_query_iterator	endQuery () const

const_query_nearest_iterator	endQueryNearest () const

void	eraseChildren ()

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
void	eraseChildren (NodeType node)

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
bool	exists (NodeType node) const
	Checks if a node exists.

bool	exists (pos_type block) const

Length	halfLength () const
	Returns the half length of the tree (/ root node), i.e. `length() / 2`.

Length	halfLength (depth_type depth) const
	Returns the half length of nodes at `depth`, i.e. `length(depth) / 2`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
constexpr Length	halfLength (NodeType node) const
	Returns the half length of `node`, i.e. `length(node) / 2`.

Length	halfLengthReciprocal () const
	Returns the reciprocal of the half length of the tree (/ root node), i.e. `1 / (length() / 2) = 2 / length()`.

Length	halfLengthReciprocal (depth_type depth) const
	Returns the reciprocal of the half length of nodes at `depth`, i.e. `1 / (length(depth) / 2) = 2 / length(depth)`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Length	halfLengthReciprocal (NodeType node) const
	Returns the reciprocal of the half length of `node`, i.e. `1 / (length(node) / 2) = 2 / length(node)`.

constexpr Index	index () const noexcept
	Returns the index of the root node.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
constexpr Index	index (NodeType node) const

bool	isInside (Point coord) const
	Checks if a coordinate is inside the tree bounds, i.e. inside `bounds()`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
bool	isLeaf (NodeType node) const
	Checks if the node is a leaf (i.e., has no children).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
bool	isParent (NodeType node) const
	Checks if the node is a parent (i.e., has children).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
bool	isPureLeaf (NodeType node) const
	Checks if the node is a pure leaf (i.e., can never have children).

bool	isPureLeaf (pos_type block) const
	Checks if the block is pure leaf (i.e., can never have children).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
constexpr bool	isRoot (NodeType node) const
	Checks if the node is the root of the tree.

constexpr bool	isRoot (pos_type block) const

Key	key () const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Key	key (NodeType node) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
std::optional< Key >	keyChecked (NodeType node) const

Length	length () const
	Returns the length of the tree (/ root node), i.e. `leaf_node_length * 2^depth()`.

Length	length (depth_type depth) const
	Returns the length of nodes at `depth`, i.e. `leaf_node_length * 2^depth`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Length	length (NodeType node) const
	Returns the length of `node`, i.e. `leaf_node_length * 2^depth(node)`.

Length	lengthReciprocal () const
	Returns the reciprocal of the length of the tree (/ root node), i.e. `1 / length()`.

Length	lengthReciprocal (depth_type depth) const
	Returns the reciprocal of the length of nodes at `depth`, i.e. `1 / length(depth)`.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Length	lengthReciprocal (NodeType node) const
	Returns the reciprocal of the length of `node`, i.e. `1 / length(node)`.

Point	max () const
	Returns the maximum point of the tree (/ root node).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Point	max (NodeType node) const
	Returns the maximum point of `node`.

Point	min () const
	Returns the minimum point of the tree (/ root node).

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Point	min (NodeType node) const
	Returns the minimum point of `node`.

bool	modified () const
	Check if the root of the tree is modified.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
bool	modified (NodeType node) const
	Check if a node of the tree is in a modified state.

void	modifiedReset ()

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
void	modifiedReset (NodeType node)

void	modifiedSet ()

void	modifiedSet (bool value)

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
void	modifiedSet (NodeType node)

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
void	modifiedSet (NodeType node, bool value)

template<class Geometry >
ConstNearest< Geometry >	nearest (Geometry const &geometry, double epsilon=0.0, bool only_leaves=true, bool only_exists=true) const

template<class NodeType , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
ConstNearest< Geometry >	nearest (NodeType node, Geometry const &geometry, double epsilon=0.0, bool only_leaves=true, bool only_exists=true) const

Node	node () const
	Returns the root node.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Node	node (NodeType node) const
	Returns the node corresponding to `node`.

constexpr depth_type	numDepthLevels () const noexcept
	Returns the number of depth levels of the tree, i.e. `depth() + 1`.

constexpr offset_type	offset () const noexcept
	Returns the offset of the root node.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
offset_type	offset (NodeType node) const
	Returns the offset of `node`.

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
ConstQuery< Predicate >	operator() (NodeType node, Predicate const &pred, bool only_exists=true, bool early_stopping=false) const

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
ConstQuery< Predicate >	operator() (Predicate const &pred, bool only_exists=true, bool early_stopping=false) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Node	operator[] (NodeType node) const
	Get the node corresponding to a code.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
auto	parent (NodeType node) const

Index	parent (pos_type block) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
auto	parentChecked (NodeType node) const

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
ConstQuery< Predicate >	query (NodeType node, Predicate const &pred, bool only_exists=true, bool early_stopping=false) const

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
ConstQuery< Predicate >	query (Predicate const &pred, bool only_exists=true, bool early_stopping=false) const

template<class NodeType , class Predicate , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
ConstQueryNearest< Predicate, Geometry >	queryNearest (NodeType node, Predicate const &pred, Geometry const &geometry, double epsilon=0.0, bool only_exists=true, bool early_stopping=false) const

template<class Predicate , class Geometry , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
ConstQueryNearest< Predicate, Geometry >	queryNearest (Predicate const &pred, Geometry const &geometry, double epsilon=0.0, bool only_exists=true, bool early_stopping=false) const

void	reserve (std::size_t num_nodes)
	Increase the capacity of the tree to at least hold `num_nodes` nodes.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
auto	sibling (NodeType node, offset_type offset) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
auto	siblingChecked (NodeType node, offset_type offset) const

std::size_t	size () const
	Returns the number of nodes in the tree.

template<class ExecutionPolicy , class NodeType , class RandomIt , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>
std::vector< TraceResult >	trace (ExecutionPolicy &&policy, NodeType node, RandomIt first, RandomIt last, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class ExecutionPolicy , class NodeType , class RandomIt1 , class RandomIt2 , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>
RandomIt2	trace (ExecutionPolicy &&policy, NodeType node, RandomIt1 first, RandomIt1 last, RandomIt2 d_first, Predicate pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class ExecutionPolicy , class RandomIt , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>
std::vector< TraceResult >	trace (ExecutionPolicy &&policy, RandomIt first, RandomIt last, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class ExecutionPolicy , class RandomIt1 , class RandomIt2 , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>
RandomIt2	trace (ExecutionPolicy &&policy, RandomIt1 first, RandomIt1 last, RandomIt2 d_first, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class InputIt , class OutputIt , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
OutputIt	trace (InputIt first, InputIt last, OutputIt d_first, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class InputIt , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
std::vector< TraceResult >	trace (InputIt first, InputIt last, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class NodeType , class InputIt , class OutputIt , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
OutputIt	trace (NodeType node, InputIt first, InputIt last, OutputIt d_first, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class NodeType , class InputIt , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
std::vector< TraceResult >	trace (NodeType node, InputIt first, InputIt last, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
TraceResult	trace (NodeType node, Ray const &ray, Predicate pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
TraceResult	trace (Ray const &ray, Predicate const &pred, float min_dist=0.0f, float max_dist=std::numeric_limits< float >::max(), bool only_exists=true) const

template<class NodeType , class UnaryFun , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UnaryFun, Index >, bool > = true>
void	traverse (NodeType node, UnaryFun f) const
	Depth first traversal of the tree, starting at `node`. The function 'f' will be called for each traversed node. If 'f' returns `true` then the children of the node will also be traverse, otherwise they will not.

template<class NodeType , class UnaryFun , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_v< UnaryFun, Node >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
void	traverse (NodeType node, UnaryFun f, Predicate pred, bool only_exists=true) const
	Depth first traversal of the tree, starting at `node`. The function 'f' will be called for each traversed node that fulfills the predicates `pred`.

template<class UnaryFun , std::enable_if_t< std::is_invocable_r_v< bool, UnaryFun, Index >, bool > = true>
void	traverse (UnaryFun f) const
	Depth first traversal of the tree, starting at the root node. The function 'f' will be called for each node traverse. If 'f' returns true then the children of the node will also be traverse, otherwise they will not.

template<class UnaryFun , class Predicate , std::enable_if_t< std::is_invocable_r_v< bool, UnaryFun, Node >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
void	traverse (UnaryFun f, Predicate const &pred, bool only_exists=true) const
	Depth first traversal of the tree, starting at the root node. The function 'f' will be called for each node traverse. If 'f' returns true then the children of the node will also be traverse, otherwise they will not.

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
bool	valid (NodeType node) const
	Checks if an index is valid.

bool	valid (pos_type block) const
	Checks if a block is valid.

Public Member Functions inherited from ufo::TreeData< Derived, Dim, TreeBlock, Blocks... >
bool	exists (pos_type block) const
	Checks if a block exists.

WGPUDevice	gpuDevice () const

bool	gpuInit (WGPUAdapter adapter)

bool	gpuInit (WGPUAdapter adapter, WGPULimits const &required_limits)

bool	gpuInit (WGPUDevice device)

bool	gpuInit (WGPULimits const &required_limits, WGPUSurface compatible_surface=nullptr, WGPUPowerPreference power_preference=WGPUPowerPreference_HighPerformance, WGPUBackendType backend_type=WGPUBackendType_Undefined)

bool	gpuInit (WGPUPowerPreference power_preference=WGPUPowerPreference_HighPerformance, WGPUBackendType backend_type=WGPUBackendType_Undefined)

WGPUBuffer	gpuInnerBuffer (std::size_t index) const

std::size_t	gpuInnerBufferSize (std::size_t index) const

WGPUBuffer	gpuLeafBuffer (std::size_t index) const

std::size_t	gpuLeafBufferSize (std::size_t index) const

std::size_t	gpuNumBuffers () const

std::size_t	gpuNumInnerBuffers () const

std::size_t	gpuNumLeafBuffers () const

WGPUQueue	gpuQueue () const

void	gpuRead ()

void	gpuRead ()

void	gpuReadInner ()

void	gpuReadInner ()

void	gpuReadLeaf ()

void	gpuReadLeaf ()

void	gpuRelease ()

bool	gpuWrite ()

bool	gpuWrite ()

bool	gpuWriteInner ()

bool	gpuWriteInner ()

bool	gpuWriteLeaf ()

bool	gpuWriteLeaf ()

InnerData &	innerData ()

InnerData const &	innerData () const

bool	innerExists (pos_type block) const

LeafData &	leafData ()

LeafData const &	leafData () const

bool	leafExists (pos_type block) const

Static Public Member Functions
static constexpr offset_type	branchingFactor () noexcept
	Returns the branching factor of the tree (i.e., 2 = binary tree, 4 = quadtree, 8 = octree, 16 = hextree).

static constexpr std::size_t	dimensions () noexcept
	Returns the number of dimensions of the tree (i.e., 1 = binary tree, 2 = quadtree, 3 = octree, 4 = hextree).

static constexpr depth_type	maxNumDepthLevels () noexcept
	Returns the maximum number of depth levels a tree can have.

static constexpr depth_type	minNumDepthLevels () noexcept
	Returns the minimum number of depth levels a tree must have.

Static Public Attributes
template<class T >
static constexpr bool const	is_node_type_v = is_node_type<T>::value

Static Public Attributes inherited from ufo::TreeData< Derived, Dim, TreeBlock, Blocks... >
static constexpr TreeIndex::offset_type const	BF

static constexpr std::size_t const	NumBuffers

Protected Types
using	Data = TreeData< Derived, Dim, TreeBlock, Blocks... >

using	InnerBlock = typename TreeBlock::InnerBlock< Dim, BF >

using	LeafBlock = typename TreeBlock::LeafBlock< Dim, BF >

using	modified_type = typename LeafBlock::modified_type

Protected Member Functions
	Tree (Length leaf_node_length, depth_type num_depth_levels)

	Tree (length_type leaf_node_length, depth_type num_depth_levels)

	Tree (Tree &&)=default

	Tree (Tree const &)=default

bool	allLeaf (InnerBlock const &block) const

bool	allLeaf (LeafBlock const &block) const

bool	allLeaf (pos_type block) const
	Checks if all nodes of a block are leaves.

bool	allParent (pos_type block) const
	Checks if all nodes of a block are parents.

bool	anyLeaf (InnerBlock const &block) const

bool	anyLeaf (LeafBlock const &block) const

bool	anyLeaf (pos_type block) const
	Checks if any node of a block is a leaf.

bool	anyParent (pos_type block) const
	Checks if any node of a block is a parent.

Index	createChild (Index node, offset_type child_offset)

pos_type	createChildren (Index node)

pos_type	createChildrenThreadSafe (Index node)

Index	createChildThreadSafe (Index node, offset_type child_offset)

void	createRoot ()

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
Index	createThreadSafe (NodeType node)

constexpr Derived &	derived ()
	Returns a reference of the derived class.

constexpr Derived const &	derived () const
	Returns a reference of the derived class.

void	init (Length leaf_node_length, depth_type num_depth_levels)

void	initInnerChildren (Index node, InnerBlock const &block, pos_type children)

void	initLeafChildren (Index node, InnerBlock const &block, pos_type children)

template<bool OnlyDistance = false, bool FastAsSonic = false, class ValueFun , class InnerFun >
std::conditional_t< OnlyDistance, float, std::pair< float, Index > >	nearest (Index node, NearestSearchAlgorithm search_alg, ValueFun value_f, InnerFun inner_f, float max_dist, float epsilon) const

template<class Predicate , class ValueFun , class InnerFun , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
std::pair< float, Index >	nearest (Index node, Predicate pred, NearestSearchAlgorithm search_alg, ValueFun value_f, InnerFun inner_f, float max_dist, float epsilon) const

template<bool OnlyDistance, bool FastAsSonic, class ValueFun , class InnerFun >
std::conditional_t< OnlyDistance, float, std::pair< float, Index > >	nearestDepthFirst (pos_type block, depth_type depth, float c_dist, float epsilon, ValueFun value_f, InnerFun inner_f) const

template<class ValueFun , class InnerFun >
std::pair< float, Index >	nearestDepthFirst (pos_type block, depth_type depth, float c_dist, ValueFun value_f, InnerFun inner_f) const

bool	noneLeaf (pos_type block) const
	Checks if no nodes of a block are leaves.

bool	noneParent (pos_type block) const
	Checks if no nodes of a block are parents.

Tree &	operator= (Tree &&)=default

Tree &	operator= (Tree const &)=default

void	pruneChildren (Index node)

void	pruneChildren (Index node, pos_type children)

template<class UpdateFun , std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>
void	recursDown (Index node, UpdateFun update_f)

template<class UpdateFun , std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>
void	recursDown (pos_type block, UpdateFun update_f)

template<class NodeType , class NodeFun , class BlockFun , class UpdateFun , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, NodeFun, Index >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>
void	recursLeaves (NodeType node, NodeFun node_f, BlockFun block_f, UpdateFun update_f, bool propagate)

template<class NodeFun , class BlockFun , class UpdateFun , std::enable_if_t< std::is_invocable_r_v< void, NodeFun, Index >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>
void	recursLeaves (pos_type block, NodeFun node_f, BlockFun block_f, UpdateFun update_f)

template<class NodeType , class NodeFun , class BlockFun , class UpdateFun , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, NodeFun, Index >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>
void	recursParentFirst (NodeType node, NodeFun node_f, BlockFun block_f, UpdateFun update_f, bool propagate)

template<class BlockFun , std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true>
void	recursParentFirst (pos_type block, BlockFun block_f)

template<class UpdateFun , std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>
void	recursUp (Index node, UpdateFun update_f)

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>
constexpr TraceResult	trace (Node node, TraceParams const &params, Predicate const &pred, float const near_clip, float const far_clip, bool only_exists) const

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>
TraceParams	traceInit (NodeType node, Ray const &ray) const

InnerBlock &	treeInnerBlock (pos_type block)

InnerBlock const &	treeInnerBlock (pos_type block) const

InnerBlock const &	treeInnerBlockConst (pos_type block) const

LeafBlock &	treeLeafBlock (pos_type block)

LeafBlock const &	treeLeafBlock (pos_type block) const

LeafBlock const &	treeLeafBlockConst (pos_type block) const

Protected Member Functions inherited from ufo::TreeData< Derived, Dim, TreeBlock, Blocks... >
void	clear ()

pos_type	create (bool leaf)

pos_type	createThreadSafe (bool leaf)

void	erase (pos_type block)

T &	innerBlock (pos_type block)

T const &	innerBlock (pos_type block) const

void	innerClear ()

pos_type	innerCreate ()

pos_type	innerCreateThreadSafe ()

void	innerErase (pos_type block)

void	innerReserve (std::size_t cap)

std::size_t	innerSize () const

T &	leafBlock (pos_type block)

T const &	leafBlock (pos_type block) const

void	leafClear ()

pos_type	leafCreate ()

pos_type	leafCreateThreadSafe ()

void	leafErase (pos_type block)

void	leafReserve (std::size_t cap)

std::size_t	leafSize () const

void	reserve (std::size_t cap)

std::size_t	size () const

Static Protected Member Functions
static constexpr Point	childCenter (Point center, Length half_length, offset_type child)
	Returns the center of the `child_index`th child.

static constexpr unsigned	firstNode (Point const &tm, float const t) noexcept

static constexpr unsigned	newNode (unsigned cur, unsigned dim) noexcept

static constexpr Point	parentCenter (Point center, Length half_length, offset_type index)
	Returns the center of the parent of the node.

static constexpr TraceParams	traceInit (Ray const &ray, Point const &center, Length half_length) noexcept

Static Protected Member Functions inherited from ufo::TreeData< Derived, Dim, TreeBlock, Blocks... >
static constexpr pos_type	addInnerType (pos_type block) noexcept

static constexpr pos_type	addLeafType (pos_type block) noexcept

static constexpr bool	inner (pos_type block) noexcept

static constexpr bool	leaf (pos_type block) noexcept

static constexpr pos_type	removeInnerType (pos_type block) noexcept

static constexpr pos_type	removeLeafType (pos_type block) noexcept

Protected Attributes
friend	Derived

Protected Attributes inherited from ufo::TreeData< Derived, Dim, TreeBlock, Blocks... >
WGPUAdapter	adapter_

WGPUDevice	device_

std::array< std::vector< WGPUBuffer >, NumBuffers >	inner_buffers_

InnerData	inner_data_

WGPUInstance	instance_

std::array< std::vector< WGPUBuffer >, NumBuffers >	leaf_buffers_

LeafData	leaf_data_

std::size_t	max_buffer_size_

WGPUQueue	queue_

Static Protected Attributes
static constexpr TreeIndex::offset_type const	BF = Data::BF

static constexpr modified_type const	MODIFIED_ALL_SET

static constexpr modified_type const	MODIFIED_NONE_SET = {}

Friends
template<class Derived2 , std::size_t Dim2, class... Blocks2>
bool	operator!= (Tree< Derived2, Dim2, Blocks2... > const &lhs, Tree< Derived2, Dim2, Blocks2... > const &rhs)

template<class Derived2 , std::size_t Dim2, class... Blocks2>
bool	operator== (Tree< Derived2, Dim2, Blocks2... > const &lhs, Tree< Derived2, Dim2, Blocks2... > const &rhs)

Detailed Description

template<class Derived, std::size_t Dim, class... Blocks>
class ufo::Tree< Derived, Dim, Blocks >

Utilizing curiously recurring template pattern (CRTP)

Template Parameters

Derived	...
Dim	...
Ts	...

Definition at line 103 of file tree.hpp.

Member Typedef Documentation

◆ Bounds

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Bounds = AABB<Dim, coord_type>

Definition at line 141 of file tree.hpp.

◆ Code

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Code = TreeCode<Dim>

Definition at line 136 of file tree.hpp.

◆ code_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::code_type = typename Code::code_type

Definition at line 147 of file tree.hpp.

◆ const_iterator

template<class Derived , std::size_t Dim, class... Blocks>

const_iterator

Definition at line 152 of file tree.hpp.

◆ const_nearest_iterator

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::const_nearest_iterator = TreeNearestIterator<Derived>

Definition at line 160 of file tree.hpp.

◆ const_nearest_iterator_geom

template<class Derived , std::size_t Dim, class... Blocks>

template<class Geometry >

using ufo::Tree< Derived, Dim, Blocks >::const_nearest_iterator_geom = TreeNearestIterator<Derived, Geometry>

Definition at line 159 of file tree.hpp.

◆ const_query_iterator

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::const_query_iterator = TreeQueryIterator<Derived>

Definition at line 156 of file tree.hpp.

◆ const_query_iterator_pred

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate >

using ufo::Tree< Derived, Dim, Blocks >::const_query_iterator_pred = TreeQueryIterator<Derived, Predicate>

Definition at line 155 of file tree.hpp.

◆ const_query_nearest_iterator

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::const_query_nearest_iterator = TreeQueryNearestIterator<Derived>

Definition at line 165 of file tree.hpp.

◆ const_query_nearest_iterator_pred_geom

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , class Geometry >

using ufo::Tree< Derived, Dim, Blocks >::const_query_nearest_iterator_pred_geom = TreeQueryNearestIterator<Derived, Predicate, Geometry>

Definition at line 163 of file tree.hpp.

◆ ConstNearest

template<class Derived , std::size_t Dim, class... Blocks>

template<class Geometry >

using ufo::Tree< Derived, Dim, Blocks >::ConstNearest = IteratorWrapper<const_nearest_iterator_geom<Geometry>, const_nearest_iterator>

Definition at line 172 of file tree.hpp.

◆ ConstQuery

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate >

using ufo::Tree< Derived, Dim, Blocks >::ConstQuery = IteratorWrapper<const_query_iterator_pred<Predicate>, const_query_iterator>

Definition at line 168 of file tree.hpp.

◆ ConstQueryNearest

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , class Geometry >

using ufo::Tree< Derived, Dim, Blocks >::ConstQueryNearest = IteratorWrapper<const_query_nearest_iterator_pred_geom<Predicate, Geometry>, const_query_nearest_iterator>

Definition at line 176 of file tree.hpp.

◆ Coord

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Coord = TreeCoord<Dim, coord_type>

Definition at line 138 of file tree.hpp.

◆ coord_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::coord_type = float

Definition at line 130 of file tree.hpp.

◆ Data

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Data = TreeData<Derived, Dim, TreeBlock, Blocks...>

protected

Definition at line 112 of file tree.hpp.

◆ depth_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::depth_type = std::uint32_t

Definition at line 132 of file tree.hpp.

◆ Index

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Index = TreeIndex

Definition at line 134 of file tree.hpp.

◆ InnerBlock

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::InnerBlock = typename TreeBlock::InnerBlock<Dim, BF>

protected

Definition at line 117 of file tree.hpp.

◆ Key

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Key = TreeKey<Dim>

Definition at line 137 of file tree.hpp.

◆ key_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::key_type = typename Key::key_type

Definition at line 148 of file tree.hpp.

◆ LeafBlock

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::LeafBlock = typename TreeBlock::LeafBlock<Dim, BF>

protected

Definition at line 116 of file tree.hpp.

◆ Length

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Length = Vec<Dim, length_type>

Definition at line 140 of file tree.hpp.

◆ length_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::length_type = double

Definition at line 131 of file tree.hpp.

◆ modified_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::modified_type = typename LeafBlock::modified_type

protected

Definition at line 119 of file tree.hpp.

◆ Node

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Node = TreeNode<Dim>

Definition at line 135 of file tree.hpp.

◆ offset_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::offset_type = typename Index::offset_type

Definition at line 146 of file tree.hpp.

◆ Point

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Point = Vec<Dim, coord_type>

Definition at line 139 of file tree.hpp.

◆ pos_type

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::pos_type = typename Index::pos_type

Definition at line 145 of file tree.hpp.

◆ Ray

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::Ray = ufo::Ray<Dim, coord_type>

Definition at line 142 of file tree.hpp.

◆ TraceResult

template<class Derived , std::size_t Dim, class... Blocks>

using ufo::Tree< Derived, Dim, Blocks >::TraceResult = ufo::TraceResult<Dim>

Definition at line 143 of file tree.hpp.

Constructor & Destructor Documentation

◆ Tree() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

ufo::Tree< Derived, Dim, Blocks >::Tree	(	Length	leaf_node_length,
		depth_type	num_depth_levels
	)

inlineprotected

Definition at line 2150 of file tree.hpp.

◆ Tree() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

ufo::Tree< Derived, Dim, Blocks >::Tree	(	length_type	leaf_node_length,
		depth_type	num_depth_levels
	)

inlineprotected

Definition at line 2156 of file tree.hpp.

Member Function Documentation

◆ allLeaf() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::allLeaf ( InnerBlock const & block ) const

inlineprotected

Definition at line 2504 of file tree.hpp.

◆ allLeaf() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::allLeaf ( LeafBlock const & block ) const

inlineprotected

Definition at line 2499 of file tree.hpp.

◆ allLeaf() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::allLeaf ( pos_type block ) const

inlineprotected

Checks if all nodes of a block are leaves.

Parameters

block the block to check

Returns: true if all nodes of the block are leaves, false otherwise.

Definition at line 2516 of file tree.hpp.

◆ allParent()

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::allParent ( pos_type block ) const

inlineprotected

Checks if all nodes of a block are parents.

Parameters

block the block to check

Returns: true if all nodes of the block are parents, false otherwise.

Definition at line 2557 of file tree.hpp.

◆ ancestor()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

auto ufo::Tree< Derived, Dim, Blocks >::ancestor	(	NodeType	node,
		depth_type	depth
	)		const

inline

Definition at line 1566 of file tree.hpp.

◆ ancestorChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

auto ufo::Tree< Derived, Dim, Blocks >::ancestorChecked	(	NodeType	node,
		depth_type	depth
	)		const

inline

Definition at line 1600 of file tree.hpp.

◆ anyLeaf() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::anyLeaf ( InnerBlock const & block ) const

inlineprotected

Definition at line 2526 of file tree.hpp.

◆ anyLeaf() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::anyLeaf ( LeafBlock const & block ) const

inlineprotected

Definition at line 2521 of file tree.hpp.

◆ anyLeaf() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::anyLeaf ( pos_type block ) const

inlineprotected

Checks if any node of a block is a leaf.

Parameters

block the block to check

Returns: true if any node of the block is a leaf, false otherwise.

Definition at line 2538 of file tree.hpp.

◆ anyParent()

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::anyParent ( pos_type block ) const

inlineprotected

Checks if any node of a block is a parent.

Parameters

block the block to check

Returns: true if any node of the block is a parent, false otherwise.

Definition at line 2565 of file tree.hpp.

◆ begin() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

const_iterator ufo::Tree< Derived, Dim, Blocks >::begin	(	bool	only_leaves = `true`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1774 of file tree.hpp.

◆ begin() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

const_iterator ufo::Tree< Derived, Dim, Blocks >::begin	(	NodeType	node,
		bool	only_leaves = `true`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1781 of file tree.hpp.

◆ beginNearest() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Geometry >

const_nearest_iterator_geom< Geometry > ufo::Tree< Derived, Dim, Blocks >::beginNearest	(	Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_leaves = `true`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1818 of file tree.hpp.

◆ beginNearest() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

const_nearest_iterator_geom< Geometry > ufo::Tree< Derived, Dim, Blocks >::beginNearest	(	NodeType	node,
		Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_leaves = `true`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1827 of file tree.hpp.

◆ beginQuery() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

const_query_iterator_pred< Predicate > ufo::Tree< Derived, Dim, Blocks >::beginQuery	(	NodeType	node,
		Predicate const &	pred,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1803 of file tree.hpp.

◆ beginQuery() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

const_query_iterator_pred< Predicate > ufo::Tree< Derived, Dim, Blocks >::beginQuery	(	Predicate const &	pred,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1794 of file tree.hpp.

◆ beginQueryNearest() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Predicate , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

const_query_nearest_iterator_pred_geom< Predicate, Geometry > ufo::Tree< Derived, Dim, Blocks >::beginQueryNearest	(	NodeType	node,
		Predicate const &	pred,
		Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1858 of file tree.hpp.

◆ beginQueryNearest() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , class Geometry , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

const_query_nearest_iterator_pred_geom< Predicate, Geometry > ufo::Tree< Derived, Dim, Blocks >::beginQueryNearest	(	Predicate const &	pred,
		Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1847 of file tree.hpp.

◆ block() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

constexpr pos_type ufo::Tree< Derived, Dim, Blocks >::block ( ) const

inlineconstexprnoexcept

Returns the block position of the root node.

Returns: The block position of the root node.

Definition at line 743 of file tree.hpp.

◆ block() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

pos_type ufo::Tree< Derived, Dim, Blocks >::block ( NodeType node ) const

inline

Returns the block position of node.

Parameters

node the node

Returns: The block position of the node.

Definition at line 756 of file tree.hpp.

◆ bounds() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

Bounds ufo::Tree< Derived, Dim, Blocks >::bounds ( ) const

inline

Returns the bounds of the tree (/ root node).

Returns: The bounds of the tree (/ root node).

Definition at line 567 of file tree.hpp.

◆ bounds() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Bounds ufo::Tree< Derived, Dim, Blocks >::bounds ( NodeType node ) const

inline

Returns the bounds of node.

Parameters

node the node

Returns: The bounds of the node.

Definition at line 587 of file tree.hpp.

◆ branchingFactor()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr offset_type ufo::Tree< Derived, Dim, Blocks >::branchingFactor ( )

inlinestaticconstexprnoexcept

Returns the branching factor of the tree (i.e., 2 = binary tree, 4 = quadtree, 8 = octree, 16 = hextree).

Returns: The branching factor of the tree.

Definition at line 203 of file tree.hpp.

◆ center() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

Coord ufo::Tree< Derived, Dim, Blocks >::center ( ) const

inline

Returns the center of the tree (/ root node).

Returns: The center of the tree (/ root node).

Definition at line 637 of file tree.hpp.

◆ center() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

constexpr Coord ufo::Tree< Derived, Dim, Blocks >::center ( NodeType node ) const

inlineconstexpr

Returns the center of node.

Parameters

node the node

Returns: The center of the node.

Definition at line 646 of file tree.hpp.

◆ centerAxis() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

coord_type ufo::Tree< Derived, Dim, Blocks >::centerAxis	(	NodeType	node,
		std::size_t	axis
	)		const

inline

Returns the center of node for the axis specified.

Parameters

node	the node
axis	the axis

Returns: The center of the node for the axis specified.

Definition at line 711 of file tree.hpp.

◆ centerAxis() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

coord_type ufo::Tree< Derived, Dim, Blocks >::centerAxis ( std::size_t axis ) const

inline

Returns the center of the tree (/ root node) for the axis specified.

Parameters

axis the axis

Returns: The center of the tree (/ root node) for the axis specified.

Definition at line 697 of file tree.hpp.

◆ centerAxisChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

std::optional< coord_type > ufo::Tree< Derived, Dim, Blocks >::centerAxisChecked	(	NodeType	node,
		std::size_t	axis
	)		const

inline

Returns the center of node for the axis specified, if the node is valid (i.e., valid(node)).

Parameters

node	the node
axis	the axis

Returns: The center of the node for the axis specified if the node is valid, null otherwise.

Definition at line 727 of file tree.hpp.

◆ centerChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

std::optional< Coord > ufo::Tree< Derived, Dim, Blocks >::centerChecked ( NodeType node ) const

inline

Returns the center of node if the node is valid (i.e., valid(node)).

Parameters

node the node

Returns: The center of the node if the node is valid, null otherwise.

Definition at line 682 of file tree.hpp.

◆ child()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

constexpr auto ufo::Tree< Derived, Dim, Blocks >::child	(	NodeType	node,
		offset_type	offset
	)		const

inlineconstexpr

Returns the i:th child of node.

Parameters

node	the node to return the child of.
offset	the offset of the child (in range `[0..2^Dim)`).

Returns: i:th child of node.

Definition at line 1450 of file tree.hpp.

◆ childCenter()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr Point ufo::Tree< Derived, Dim, Blocks >::childCenter	(	Point	center,
		Length	half_length,
		offset_type	child
	)

inlinestaticconstexprprotected

Returns the center of the child_indexth child.

Parameters

center	the center of the parent
half_length	the half length of the parent
child	the offset of the child

Returns: The center of the childth child.

Definition at line 2593 of file tree.hpp.

◆ childChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

auto ufo::Tree< Derived, Dim, Blocks >::childChecked	(	NodeType	node,
		offset_type	offset
	)		const

inline

Get a child of a node with bounds checking.

Parameters

node	The node.
offset	The offset of the child.

Returns: The child.

Definition at line 1480 of file tree.hpp.

◆ children() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

pos_type ufo::Tree< Derived, Dim, Blocks >::children ( Index node ) const

inline

Definition at line 1437 of file tree.hpp.

◆ children() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

std::array< pos_type, BF > const & ufo::Tree< Derived, Dim, Blocks >::children ( pos_type block ) const

inline

Definition at line 1431 of file tree.hpp.

◆ clear() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::clear ( )

inline

Erases all nodes from the tree.

Definition at line 234 of file tree.hpp.

◆ clear() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::clear	(	Length const &	leaf_node_length,
		depth_type	num_depth_levels
	)

inline

Definition at line 241 of file tree.hpp.

◆ clear() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::clear	(	length_type const &	leaf_node_length,
		depth_type	num_depth_levels
	)

inline

Definition at line 247 of file tree.hpp.

◆ code() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

Code ufo::Tree< Derived, Dim, Blocks >::code ( ) const

inline

Definition at line 891 of file tree.hpp.

◆ code() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Code ufo::Tree< Derived, Dim, Blocks >::code ( NodeType node ) const

inline

Definition at line 894 of file tree.hpp.

◆ codeChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

std::optional< Code > ufo::Tree< Derived, Dim, Blocks >::codeChecked ( NodeType node ) const

inline

Definition at line 924 of file tree.hpp.

◆ create() [1/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class RandomIt , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>

std::vector< Index > ufo::Tree< Derived, Dim, Blocks >::create	(	ExecutionPolicy &&	policy,
		RandomIt	first,
		RandomIt	last
	)

inline

Definition at line 1172 of file tree.hpp.

◆ create() [2/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class RandomIt1 , class RandomIt2 , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>

RandomIt2 ufo::Tree< Derived, Dim, Blocks >::create	(	ExecutionPolicy &&	policy,
		RandomIt1	first,
		RandomIt1	last,
		RandomIt2	d_first
	)

inline

Definition at line 1122 of file tree.hpp.

◆ create() [3/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class Range , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true, std::enable_if_t<!is_node_type_v< Range >, bool > = true>

std::vector< Index > ufo::Tree< Derived, Dim, Blocks >::create	(	ExecutionPolicy &&	policy,
		Range const &	r
	)

inline

Definition at line 1194 of file tree.hpp.

◆ create() [4/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class Range , class RandomIt , std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true, std::enable_if_t<!is_node_type_v< Range >, bool > = true>

RandomIt ufo::Tree< Derived, Dim, Blocks >::create	(	ExecutionPolicy &&	policy,
		Range const &	r,
		RandomIt	d_first
	)

inline

Definition at line 1183 of file tree.hpp.

◆ create() [5/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class InputIt >

std::vector< Index > ufo::Tree< Derived, Dim, Blocks >::create	(	InputIt	first,
		InputIt	last
	)

inline

Definition at line 1091 of file tree.hpp.

◆ create() [6/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class InputIt , class OutputIt >

OutputIt ufo::Tree< Derived, Dim, Blocks >::create	(	InputIt	first,
		InputIt	last,
		OutputIt	d_first
	)

inline

Definition at line 1063 of file tree.hpp.

◆ create() [7/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Index ufo::Tree< Derived, Dim, Blocks >::create ( NodeType node )

inline

Definition at line 1042 of file tree.hpp.

◆ create() [8/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Range , std::enable_if_t<!is_node_type_v< Range >, bool > = true>

std::vector< Index > ufo::Tree< Derived, Dim, Blocks >::create ( Range const & r )

inline

Definition at line 1110 of file tree.hpp.

◆ create() [9/9]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Range , class OutputIt , std::enable_if_t<!is_node_type_v< Range > &&!execution::is_execution_policy_v< Range >, bool > = true>

OutputIt ufo::Tree< Derived, Dim, Blocks >::create	(	Range const &	r,
		OutputIt	d_first
	)

inline

Definition at line 1102 of file tree.hpp.

◆ createChild()

template<class Derived , std::size_t Dim, class... Blocks>

Index ufo::Tree< Derived, Dim, Blocks >::createChild	(	Index	node,
		offset_type	child_offset
	)

inlineprotected

Definition at line 2739 of file tree.hpp.

◆ createChildren()

template<class Derived , std::size_t Dim, class... Blocks>

pos_type ufo::Tree< Derived, Dim, Blocks >::createChildren ( Index node )

inlineprotected

Definition at line 2654 of file tree.hpp.

◆ createChildrenThreadSafe()

template<class Derived , std::size_t Dim, class... Blocks>

pos_type ufo::Tree< Derived, Dim, Blocks >::createChildrenThreadSafe ( Index node )

inlineprotected

Definition at line 2680 of file tree.hpp.

◆ createChildThreadSafe()

template<class Derived , std::size_t Dim, class... Blocks>

Index ufo::Tree< Derived, Dim, Blocks >::createChildThreadSafe	(	Index	node,
		offset_type	child_offset
	)

inlineprotected

Definition at line 2747 of file tree.hpp.

◆ createRoot()

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::createRoot ( )

inlineprotected

Definition at line 2262 of file tree.hpp.

◆ createThreadSafe()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Index ufo::Tree< Derived, Dim, Blocks >::createThreadSafe ( NodeType node )

inlineprotected

Definition at line 2756 of file tree.hpp.

◆ depth() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

depth_type ufo::Tree< Derived, Dim, Blocks >::depth ( ) const

inline

Returns the depth of the root node, i.e. numDepthLevels() - 1.

Note: The tree's depth levels are [0..depth()].

Returns: The depth of the root node.

Definition at line 290 of file tree.hpp.

◆ depth() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

constexpr depth_type ufo::Tree< Derived, Dim, Blocks >::depth ( NodeType node ) const

inlineconstexpr

Returns the depth of the node.

Note: The tree's depth levels are [0..depth()].

Parameters

node the node

Returns: The depth of the node.

Definition at line 314 of file tree.hpp.

◆ depth() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

depth_type ufo::Tree< Derived, Dim, Blocks >::depth ( pos_type block ) const

inline

Returns the depth of the block.

Note: The tree's depth levels are [0..depth()].

Parameters

block the block

Returns: The depth of the block.

Definition at line 300 of file tree.hpp.

◆ derived() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

constexpr Derived & ufo::Tree< Derived, Dim, Blocks >::derived ( )

inlineconstexprprotected

Returns a reference of the derived class.

Returns: A reference of the derived class.

Definition at line 2244 of file tree.hpp.

◆ derived() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

constexpr Derived const & ufo::Tree< Derived, Dim, Blocks >::derived ( ) const

inlineconstexprprotected

Returns a reference of the derived class.

Returns: A reference of the derived class.

Definition at line 2251 of file tree.hpp.

◆ dimensions()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr std::size_t ufo::Tree< Derived, Dim, Blocks >::dimensions ( )

inlinestaticconstexprnoexcept

Returns the number of dimensions of the tree (i.e., 1 = binary tree, 2 = quadtree, 3 = octree, 4 = hextree).

Returns: The number of dimensions of the tree.

Definition at line 211 of file tree.hpp.

◆ end()

template<class Derived , std::size_t Dim, class... Blocks>

const_iterator ufo::Tree< Derived, Dim, Blocks >::end ( ) const

inline

Definition at line 1787 of file tree.hpp.

◆ endNearest()

template<class Derived , std::size_t Dim, class... Blocks>

const_nearest_iterator ufo::Tree< Derived, Dim, Blocks >::endNearest ( ) const

inline

Definition at line 1835 of file tree.hpp.

◆ endQuery()

template<class Derived , std::size_t Dim, class... Blocks>

const_query_iterator ufo::Tree< Derived, Dim, Blocks >::endQuery ( ) const

inline

Definition at line 1811 of file tree.hpp.

◆ endQueryNearest()

template<class Derived , std::size_t Dim, class... Blocks>

const_query_nearest_iterator ufo::Tree< Derived, Dim, Blocks >::endQueryNearest ( ) const

inline

Definition at line 1867 of file tree.hpp.

◆ eraseChildren() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::eraseChildren ( )

inline

Definition at line 1208 of file tree.hpp.

◆ eraseChildren() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::eraseChildren ( NodeType node )

inline

Definition at line 1211 of file tree.hpp.

◆ exists() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

bool ufo::Tree< Derived, Dim, Blocks >::exists ( NodeType node ) const

inline

Checks if a node exists.

Parameters

node	the node to check

Returns: true if the node exists, false otherwise.

Definition at line 1413 of file tree.hpp.

◆ exists() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::exists ( pos_type block ) const

inline

Definition at line 1401 of file tree.hpp.

◆ firstNode()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr unsigned ufo::Tree< Derived, Dim, Blocks >::firstNode	(	Point const &	tm,
		float const	t
	)

inlinestaticconstexprprotectednoexcept

Definition at line 3439 of file tree.hpp.

◆ halfLength() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::halfLength ( ) const

inline

Returns the half length of the tree (/ root node), i.e. length() / 2.

Note: The half length is often used, therefore this function exists for improved performance and precision.

Returns: The half length of the tree (/ root node).

Definition at line 379 of file tree.hpp.

◆ halfLength() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::halfLength ( depth_type depth ) const

inline

Returns the half length of nodes at depth, i.e. length(depth) / 2.

Note: The half length is often used, therefore this function exists for improved performance and precision.; The tree's depth levels are [0..depth()].

Parameters

depth the depth

Returns: The half length of nodes at depth.

Definition at line 392 of file tree.hpp.

◆ halfLength() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

constexpr Length ufo::Tree< Derived, Dim, Blocks >::halfLength ( NodeType node ) const

inlineconstexpr

Returns the half length of node, i.e. length(node) / 2.

Note: The half length is often used, therefore this function exists for improved performance and precision.

Parameters

node the node

Returns: The half length of the node.

Definition at line 408 of file tree.hpp.

◆ halfLengthReciprocal() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::halfLengthReciprocal ( ) const

inline

Returns the reciprocal of the half length of the tree (/ root node), i.e. 1 / (length() / 2) = 2 / length().

Note: The reciprocal of the half length is often used, therefore this function exists for improved performance and precision.

Returns: The reciprocal of the half length of the tree (/ root node).

Definition at line 466 of file tree.hpp.

◆ halfLengthReciprocal() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::halfLengthReciprocal ( depth_type depth ) const

inline

Returns the reciprocal of the half length of nodes at depth, i.e. 1 / (length(depth) / 2) = 2 / length(depth).

Note: The reciprocal of the half length is often used, therefore this function exists for improved performance and precision.; The tree's depth levels are [0..depth()].

Parameters

depth the depth

Returns: The reciprocal of the half length of nodes at depth.

Definition at line 483 of file tree.hpp.

◆ halfLengthReciprocal() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Length ufo::Tree< Derived, Dim, Blocks >::halfLengthReciprocal ( NodeType node ) const

inline

Returns the reciprocal of the half length of node, i.e. 1 / (length(node) / 2) = 2 / length(node).

Note: The reciprocal of the half length is often used, therefore this function exists for improved performance and precision.

Parameters

node the node

Returns: The reciprocal of the half length of the node.

Definition at line 500 of file tree.hpp.

◆ index() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

constexpr Index ufo::Tree< Derived, Dim, Blocks >::index ( ) const

inlineconstexprnoexcept

Returns the index of the root node.

Returns: The index of the root node.

Definition at line 803 of file tree.hpp.

◆ index() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

constexpr Index ufo::Tree< Derived, Dim, Blocks >::index ( NodeType node ) const

inlineconstexpr

Definition at line 809 of file tree.hpp.

◆ init()

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::init	(	Length	leaf_node_length,
		depth_type	num_depth_levels
	)

inlineprotected

Definition at line 2189 of file tree.hpp.

◆ initInnerChildren()

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::initInnerChildren	(	Index	node,
		InnerBlock const &	block,
		pos_type	children
	)

inlineprotected

Definition at line 2642 of file tree.hpp.

◆ initLeafChildren()

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::initLeafChildren	(	Index	node,
		InnerBlock const &	block,
		pos_type	children
	)

inlineprotected

Definition at line 2632 of file tree.hpp.

◆ isInside()

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::isInside ( Point coord ) const

inline

Checks if a coordinate is inside the tree bounds, i.e. inside bounds().

Parameters

coord the coordinate

Returns: true if the coordinate is inside the bounds, false otherwise.

Definition at line 610 of file tree.hpp.

◆ isLeaf()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

bool ufo::Tree< Derived, Dim, Blocks >::isLeaf ( NodeType node ) const

inline

Checks if the node is a leaf (i.e., has no children).

Parameters

node	the node to check

Returns: true if the node is a leaf, false otherwise.

Definition at line 1292 of file tree.hpp.

◆ isParent()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

bool ufo::Tree< Derived, Dim, Blocks >::isParent ( NodeType node ) const

inline

Checks if the node is a parent (i.e., has children).

Parameters

node	the node to check

Returns: true if the node is a parent, false otherwise.

Definition at line 1308 of file tree.hpp.

◆ isPureLeaf() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

bool ufo::Tree< Derived, Dim, Blocks >::isPureLeaf ( NodeType node ) const

inline

Checks if the node is a pure leaf (i.e., can never have children).

Note: Only have to check if the depth of the node is 0.

Parameters

node	the node to check

Returns: true if the node is a pure leaf, false otherwise.

Definition at line 1271 of file tree.hpp.

◆ isPureLeaf() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::isPureLeaf ( pos_type block ) const

inline

Checks if the block is pure leaf (i.e., can never have children).

Note: Only have to check if the depth of the block is 0.

Parameters

block the block to check

Returns: true if the block is pure leaf, false otherwise.

Definition at line 1256 of file tree.hpp.

◆ isRoot() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

constexpr bool ufo::Tree< Derived, Dim, Blocks >::isRoot ( NodeType node ) const

inlineconstexpr

Checks if the node is the root of the tree.

Parameters

node	the node to check

Returns: true if the node is the root, false otherwise.

Definition at line 1331 of file tree.hpp.

◆ isRoot() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

constexpr bool ufo::Tree< Derived, Dim, Blocks >::isRoot ( pos_type block ) const

inlineconstexpr

Definition at line 1319 of file tree.hpp.

◆ key() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

Key ufo::Tree< Derived, Dim, Blocks >::key ( ) const

inline

Definition at line 933 of file tree.hpp.

◆ key() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Key ufo::Tree< Derived, Dim, Blocks >::key ( NodeType node ) const

inline

Definition at line 936 of file tree.hpp.

◆ keyChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

std::optional< Key > ufo::Tree< Derived, Dim, Blocks >::keyChecked ( NodeType node ) const

inline

Definition at line 965 of file tree.hpp.

◆ length() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::length ( ) const

inline

Returns the length of the tree (/ root node), i.e. leaf_node_length * 2^depth().

Returns: The length of the tree (/ root node).

Definition at line 342 of file tree.hpp.

◆ length() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::length ( depth_type depth ) const

inline

Returns the length of nodes at depth, i.e. leaf_node_length * 2^depth.

Note: The tree's depth levels are [0..depth()].

Parameters

depth the depth

Returns: The length of nodes at depth.

Definition at line 353 of file tree.hpp.

◆ length() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Length ufo::Tree< Derived, Dim, Blocks >::length ( NodeType node ) const

inline

Returns the length of node, i.e. leaf_node_length * 2^depth(node).

Parameters

node the node

Returns: The length of the node.

Definition at line 366 of file tree.hpp.

◆ lengthReciprocal() [1/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::lengthReciprocal ( ) const

inline

Returns the reciprocal of the length of the tree (/ root node), i.e. 1 / length().

Note: The reciprocal of the length is often used, therefore this function exists for improved performance and precision.

Returns: The reciprocal of the length of the tree (/ root node).

Definition at line 422 of file tree.hpp.

◆ lengthReciprocal() [2/3]

template<class Derived , std::size_t Dim, class... Blocks>

Length ufo::Tree< Derived, Dim, Blocks >::lengthReciprocal ( depth_type depth ) const

inline

Returns the reciprocal of the length of nodes at depth, i.e. 1 / length(depth).

Note: The reciprocal of the length is often used, therefore this function exists for improved performance and precision.; The tree's depth levels are [0..depth()].

Parameters

depth the depth

Returns: The reciprocal of the length of nodes at depth.

Definition at line 436 of file tree.hpp.

◆ lengthReciprocal() [3/3]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Length ufo::Tree< Derived, Dim, Blocks >::lengthReciprocal ( NodeType node ) const

inline

Returns the reciprocal of the length of node, i.e. 1 / length(node).

Note: The reciprocal of the length is often used, therefore this function exists for improved performance and precision.

Parameters

node the node

Returns: The reciprocal of the length of the node.

Definition at line 452 of file tree.hpp.

◆ max() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

Point ufo::Tree< Derived, Dim, Blocks >::max ( ) const

inline

Returns the maximum point of the tree (/ root node).

Returns: The maximum point of the tree (/ root node).

Definition at line 533 of file tree.hpp.

◆ max() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Point ufo::Tree< Derived, Dim, Blocks >::max ( NodeType node ) const

inline

Returns the maximum point of node.

Parameters

node the node

Returns: The maximum point of the node.

Definition at line 551 of file tree.hpp.

◆ maxNumDepthLevels()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr depth_type ufo::Tree< Derived, Dim, Blocks >::maxNumDepthLevels ( )

inlinestaticconstexprnoexcept

Returns the maximum number of depth levels a tree can have.

Returns: The maximum number of depth levels a tree can have.

Definition at line 278 of file tree.hpp.

◆ min() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

Point ufo::Tree< Derived, Dim, Blocks >::min ( ) const

inline

Returns the minimum point of the tree (/ root node).

Returns: The minimum point of the tree (/ root node).

Definition at line 514 of file tree.hpp.

◆ min() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Point ufo::Tree< Derived, Dim, Blocks >::min ( NodeType node ) const

inline

Returns the minimum point of node.

Parameters

node the node

Returns: The minimum point of the node.

Definition at line 523 of file tree.hpp.

◆ minNumDepthLevels()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr depth_type ufo::Tree< Derived, Dim, Blocks >::minNumDepthLevels ( )

inlinestaticconstexprnoexcept

Returns the minimum number of depth levels a tree must have.

Returns: The minimum number of depth levels a tree must have.

Definition at line 271 of file tree.hpp.

◆ modified() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::modified ( ) const

inline

Check if the root of the tree is modified.

Returns: Whether the root of the tree is in a modified state.

Definition at line 981 of file tree.hpp.

◆ modified() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

bool ufo::Tree< Derived, Dim, Blocks >::modified ( NodeType node ) const

inline

Check if a node of the tree is in a modified state.

Parameters

node	The node to check.

Returns: Whether the node is in a modified state.

Definition at line 990 of file tree.hpp.

◆ modifiedReset() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::modifiedReset ( )

inline

Definition at line 1017 of file tree.hpp.

◆ modifiedReset() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::modifiedReset ( NodeType node )

inline

Definition at line 1020 of file tree.hpp.

◆ modifiedSet() [1/4]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::modifiedSet ( )

inline

Definition at line 1004 of file tree.hpp.

◆ modifiedSet() [2/4]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::modifiedSet ( bool value )

inline

Definition at line 996 of file tree.hpp.

◆ modifiedSet() [3/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::modifiedSet ( NodeType node )

inline

Definition at line 1007 of file tree.hpp.

◆ modifiedSet() [4/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::modifiedSet	(	NodeType	node,
		bool	value
	)

inline

Definition at line 999 of file tree.hpp.

◆ nearest() [1/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Geometry >

ConstNearest< Geometry > ufo::Tree< Derived, Dim, Blocks >::nearest	(	Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_leaves = `true`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1924 of file tree.hpp.

◆ nearest() [2/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<bool OnlyDistance = false, bool FastAsSonic = false, class ValueFun , class InnerFun >

std::conditional_t< OnlyDistance, float, std::pair< float, Index > > ufo::Tree< Derived, Dim, Blocks >::nearest	(	Index	node,
		NearestSearchAlgorithm	search_alg,
		ValueFun	value_f,
		InnerFun	inner_f,
		float	max_dist,
		float	epsilon
	)		const

inlineprotected

Definition at line 2817 of file tree.hpp.

◆ nearest() [3/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , class ValueFun , class InnerFun , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

std::pair< float, Index > ufo::Tree< Derived, Dim, Blocks >::nearest	(	Index	node,
		Predicate	pred,
		NearestSearchAlgorithm	search_alg,
		ValueFun	value_f,
		InnerFun	inner_f,
		float	max_dist,
		float	epsilon
	)		const

inlineprotected

Definition at line 2867 of file tree.hpp.

◆ nearest() [4/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

ConstNearest< Geometry > ufo::Tree< Derived, Dim, Blocks >::nearest	(	NodeType	node,
		Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_leaves = `true`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1934 of file tree.hpp.

◆ nearestDepthFirst() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<bool OnlyDistance, bool FastAsSonic, class ValueFun , class InnerFun >

std::conditional_t< OnlyDistance, float, std::pair< float, Index > > ufo::Tree< Derived, Dim, Blocks >::nearestDepthFirst	(	pos_type	block,
		depth_type	depth,
		float	c_dist,
		float	epsilon,
		ValueFun	value_f,
		InnerFun	inner_f
	)		const

inlineprotected

Definition at line 2891 of file tree.hpp.

◆ nearestDepthFirst() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ValueFun , class InnerFun >

std::pair< float, Index > ufo::Tree< Derived, Dim, Blocks >::nearestDepthFirst	(	pos_type	block,
		depth_type	depth,
		float	c_dist,
		ValueFun	value_f,
		InnerFun	inner_f
	)		const

inlineprotected

Definition at line 3091 of file tree.hpp.

◆ newNode()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr unsigned ufo::Tree< Derived, Dim, Blocks >::newNode	(	unsigned	cur,
		unsigned	dim
	)

inlinestaticconstexprprotectednoexcept

Definition at line 3449 of file tree.hpp.

◆ node() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

Node ufo::Tree< Derived, Dim, Blocks >::node ( ) const

inline

Returns the root node.

Returns: The root node.

Definition at line 843 of file tree.hpp.

◆ node() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Node ufo::Tree< Derived, Dim, Blocks >::node ( NodeType node ) const

inline

Returns the node corresponding to node.

Parameters

node the node

Returns: The node.

Definition at line 852 of file tree.hpp.

◆ noneLeaf()

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::noneLeaf ( pos_type block ) const

inlineprotected

Checks if no nodes of a block are leaves.

Parameters

block the block to check

Returns: true if no nodes of the block are leaves, false otherwise.

Definition at line 2549 of file tree.hpp.

◆ noneParent()

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::noneParent ( pos_type block ) const

inlineprotected

Checks if no nodes of a block are parents.

Parameters

block the block to check

Returns: true if no nodes of the block are parents, false otherwise.

Definition at line 2573 of file tree.hpp.

◆ numDepthLevels()

template<class Derived , std::size_t Dim, class... Blocks>

constexpr depth_type ufo::Tree< Derived, Dim, Blocks >::numDepthLevels ( ) const

inlineconstexprnoexcept

Returns the number of depth levels of the tree, i.e. depth() + 1.

Returns: The number of depth levels of the tree.

Definition at line 261 of file tree.hpp.

◆ offset() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

constexpr offset_type ufo::Tree< Derived, Dim, Blocks >::offset ( ) const

inlineconstexprnoexcept

Returns the offset of the root node.

Returns: The offset of the root node.

Definition at line 770 of file tree.hpp.

◆ offset() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

offset_type ufo::Tree< Derived, Dim, Blocks >::offset ( NodeType node ) const

inline

Returns the offset of node.

Parameters

node the node

Returns: The offset of the node.

Definition at line 780 of file tree.hpp.

◆ operator()() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

ConstQuery< Predicate > ufo::Tree< Derived, Dim, Blocks >::operator()	(	NodeType	node,
		Predicate const &	pred,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1912 of file tree.hpp.

◆ operator()() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

ConstQuery< Predicate > ufo::Tree< Derived, Dim, Blocks >::operator()	(	Predicate const &	pred,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1902 of file tree.hpp.

◆ operator[]()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

Node ufo::Tree< Derived, Dim, Blocks >::operator[] ( NodeType node ) const

inline

Get the node corresponding to a code.

Note: The node can be higher up the tree than the specified depth. This happens if the node at a higher depth has no children. If it is neccessary that the node is at the specified depth, then the corresponding 'createNode' function can be used. The data inside the nodes returned by this function and 'createNode' will be the same, so it is only neccessary to use 'createNode' if you intend to alter what the node stores.

Parameters

node The node.

Returns: The node.

Definition at line 882 of file tree.hpp.

◆ parent() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

auto ufo::Tree< Derived, Dim, Blocks >::parent ( NodeType node ) const

inline

Definition at line 1537 of file tree.hpp.

◆ parent() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

Index ufo::Tree< Derived, Dim, Blocks >::parent ( pos_type block ) const

inline

Definition at line 1529 of file tree.hpp.

◆ parentCenter()

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr Point ufo::Tree< Derived, Dim, Blocks >::parentCenter	(	Point	center,
		Length	half_length,
		offset_type	index
	)

inlinestaticconstexprprotected

Returns the center of the parent of the node.

Parameters

center	the center of the child
half_length	the half length of the child
index	the index of the child

Returns: The center of the parent.

Definition at line 2616 of file tree.hpp.

◆ parentChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

auto ufo::Tree< Derived, Dim, Blocks >::parentChecked ( NodeType node ) const

inline

Definition at line 1556 of file tree.hpp.

◆ pruneChildren() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::pruneChildren ( Index node )

inlineprotected

Definition at line 2783 of file tree.hpp.

◆ pruneChildren() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::pruneChildren	(	Index	node,
		pos_type	children
	)

inlineprotected

Definition at line 2785 of file tree.hpp.

◆ query() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

ConstQuery< Predicate > ufo::Tree< Derived, Dim, Blocks >::query	(	NodeType	node,
		Predicate const &	pred,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1893 of file tree.hpp.

◆ query() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

ConstQuery< Predicate > ufo::Tree< Derived, Dim, Blocks >::query	(	Predicate const &	pred,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1883 of file tree.hpp.

◆ queryNearest() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Predicate , class Geometry , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

ConstQueryNearest< Predicate, Geometry > ufo::Tree< Derived, Dim, Blocks >::queryNearest	(	NodeType	node,
		Predicate const &	pred,
		Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1959 of file tree.hpp.

◆ queryNearest() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , class Geometry , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

ConstQueryNearest< Predicate, Geometry > ufo::Tree< Derived, Dim, Blocks >::queryNearest	(	Predicate const &	pred,
		Geometry const &	geometry,
		double	epsilon = `0.0`,
		bool	only_exists = `true`,
		bool	early_stopping = `false`
	)		const

inline

Definition at line 1949 of file tree.hpp.

◆ recursDown() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class UpdateFun , std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::recursDown	(	Index	node,
		UpdateFun	update_f
	)

inlineprotected

Definition at line 2359 of file tree.hpp.

◆ recursDown() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class UpdateFun , std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::recursDown	(	pos_type	block,
		UpdateFun	update_f
	)

inlineprotected

Definition at line 2340 of file tree.hpp.

◆ recursLeaves() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class NodeFun , class BlockFun , class UpdateFun , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, NodeFun, Index >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::recursLeaves	(	NodeType	node,
		NodeFun	node_f,
		BlockFun	block_f,
		UpdateFun	update_f,
		bool	propagate
	)

inlineprotected

Definition at line 2414 of file tree.hpp.

◆ recursLeaves() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeFun , class BlockFun , class UpdateFun , std::enable_if_t< std::is_invocable_r_v< void, NodeFun, Index >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::recursLeaves	(	pos_type	block,
		NodeFun	node_f,
		BlockFun	block_f,
		UpdateFun	update_f
	)

inlineprotected

Definition at line 2378 of file tree.hpp.

◆ recursParentFirst() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class NodeFun , class BlockFun , class UpdateFun , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, NodeFun, Index >, bool > = true, std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::recursParentFirst	(	NodeType	node,
		NodeFun	node_f,
		BlockFun	block_f,
		UpdateFun	update_f,
		bool	propagate
	)

inlineprotected

Definition at line 2470 of file tree.hpp.

◆ recursParentFirst() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class BlockFun , std::enable_if_t< std::is_invocable_r_v< void, BlockFun, pos_type >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::recursParentFirst	(	pos_type	block,
		BlockFun	block_f
	)

inlineprotected

Definition at line 2442 of file tree.hpp.

◆ recursUp()

template<class Derived , std::size_t Dim, class... Blocks>

template<class UpdateFun , std::enable_if_t< std::is_invocable_r_v< bool, UpdateFun, Index, pos_type >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::recursUp	(	Index	node,
		UpdateFun	update_f
	)

inlineprotected

Definition at line 2324 of file tree.hpp.

◆ reserve()

template<class Derived , std::size_t Dim, class... Blocks>

void ufo::Tree< Derived, Dim, Blocks >::reserve ( std::size_t num_nodes )

inline

Increase the capacity of the tree to at least hold num_nodes nodes.

Parameters

num_nodes The new capacity.

Definition at line 229 of file tree.hpp.

◆ sibling()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

auto ufo::Tree< Derived, Dim, Blocks >::sibling	(	NodeType	node,
		offset_type	offset
	)		const

inline

Definition at line 1499 of file tree.hpp.

◆ siblingChecked()

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

auto ufo::Tree< Derived, Dim, Blocks >::siblingChecked	(	NodeType	node,
		offset_type	offset
	)		const

inline

Definition at line 1519 of file tree.hpp.

◆ size()

template<class Derived , std::size_t Dim, class... Blocks>

std::size_t ufo::Tree< Derived, Dim, Blocks >::size ( ) const

inline

Returns the number of nodes in the tree.

Returns: The number of nodes in the tree.

Definition at line 218 of file tree.hpp.

◆ trace() [1/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class NodeType , class RandomIt , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>

std::vector< TraceResult > ufo::Tree< Derived, Dim, Blocks >::trace	(	ExecutionPolicy &&	policy,
		NodeType	node,
		RandomIt	first,
		RandomIt	last,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2118 of file tree.hpp.

◆ trace() [2/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class NodeType , class RandomIt1 , class RandomIt2 , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>

RandomIt2 ufo::Tree< Derived, Dim, Blocks >::trace	(	ExecutionPolicy &&	policy,
		NodeType	node,
		RandomIt1	first,
		RandomIt1	last,
		RandomIt2	d_first,
		Predicate	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2070 of file tree.hpp.

◆ trace() [3/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class RandomIt , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>

std::vector< TraceResult > ufo::Tree< Derived, Dim, Blocks >::trace	(	ExecutionPolicy &&	policy,
		RandomIt	first,
		RandomIt	last,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2104 of file tree.hpp.

◆ trace() [4/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class ExecutionPolicy , class RandomIt1 , class RandomIt2 , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true, std::enable_if_t< execution::is_execution_policy_v< ExecutionPolicy >, bool > = true>

RandomIt2 ufo::Tree< Derived, Dim, Blocks >::trace	(	ExecutionPolicy &&	policy,
		RandomIt1	first,
		RandomIt1	last,
		RandomIt2	d_first,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2056 of file tree.hpp.

◆ trace() [5/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class InputIt , class OutputIt , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

OutputIt ufo::Tree< Derived, Dim, Blocks >::trace	(	InputIt	first,
		InputIt	last,
		OutputIt	d_first,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2010 of file tree.hpp.

◆ trace() [6/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class InputIt , class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

std::vector< TraceResult > ufo::Tree< Derived, Dim, Blocks >::trace	(	InputIt	first,
		InputIt	last,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2031 of file tree.hpp.

◆ trace() [7/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

constexpr TraceResult ufo::Tree< Derived, Dim, Blocks >::trace	(	Node	node,
		TraceParams const &	params,
		Predicate const &	pred,
		float const	near_clip,
		float const	far_clip,
		bool	only_exists
	)		const

inlineconstexprprotected

Definition at line 3458 of file tree.hpp.

◆ trace() [8/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class InputIt , class OutputIt , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

OutputIt ufo::Tree< Derived, Dim, Blocks >::trace	(	NodeType	node,
		InputIt	first,
		InputIt	last,
		OutputIt	d_first,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2021 of file tree.hpp.

◆ trace() [9/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class InputIt , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

std::vector< TraceResult > ufo::Tree< Derived, Dim, Blocks >::trace	(	NodeType	node,
		InputIt	first,
		InputIt	last,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 2041 of file tree.hpp.

◆ trace() [10/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

TraceResult ufo::Tree< Derived, Dim, Blocks >::trace	(	NodeType	node,
		Ray const &	ray,
		Predicate	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1988 of file tree.hpp.

◆ trace() [11/11]

template<class Derived , std::size_t Dim, class... Blocks>

template<class Predicate , std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

TraceResult ufo::Tree< Derived, Dim, Blocks >::trace	(	Ray const &	ray,
		Predicate const &	pred,
		float	min_dist = `0.0f`,
		float	max_dist = `std::numeric_limits<float>::max()`,
		bool	only_exists = `true`
	)		const

inline

Definition at line 1977 of file tree.hpp.

◆ traceInit() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

TraceParams ufo::Tree< Derived, Dim, Blocks >::traceInit	(	NodeType	node,
		Ray const &	ray
	)		const

inlineprotected

Definition at line 3411 of file tree.hpp.

◆ traceInit() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

static constexpr TraceParams ufo::Tree< Derived, Dim, Blocks >::traceInit	(	Ray const &	ray,
		Point const &	center,
		Length	half_length
	)

inlinestaticconstexprprotectednoexcept

Definition at line 3416 of file tree.hpp.

◆ traverse() [1/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class UnaryFun , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_r_v< bool, UnaryFun, Index >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::traverse	(	NodeType	node,
		UnaryFun	f
	)		const

inline

Depth first traversal of the tree, starting at node. The function 'f' will be called for each traversed node. If 'f' returns true then the children of the node will also be traverse, otherwise they will not.

Parameters

node	The node to start the traversal from.
f	The callback function to be called for each node traversed.

Definition at line 1633 of file tree.hpp.

◆ traverse() [2/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , class UnaryFun , class Predicate , std::enable_if_t< is_node_type_v< NodeType >, bool > = true, std::enable_if_t< std::is_invocable_v< UnaryFun, Node >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::traverse	(	NodeType	node,
		UnaryFun	f,
		Predicate	pred,
		bool	only_exists = `true`
	)		const

inline

Depth first traversal of the tree, starting at node. The function 'f' will be called for each traversed node that fulfills the predicates pred.

Parameters

node	The node to start the traversal from.
f	The callback function to be called.
pred	Predicates that need to be fulfilled.
only_exists	Whether only existing nodes should be traversed.

Definition at line 1690 of file tree.hpp.

◆ traverse() [3/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class UnaryFun , std::enable_if_t< std::is_invocable_r_v< bool, UnaryFun, Index >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::traverse ( UnaryFun f ) const

inline

Depth first traversal of the tree, starting at the root node. The function 'f' will be called for each node traverse. If 'f' returns true then the children of the node will also be traverse, otherwise they will not.

Parameters

f	The callback function to be called for each node traversed.

Definition at line 1617 of file tree.hpp.

◆ traverse() [4/4]

template<class Derived , std::size_t Dim, class... Blocks>

template<class UnaryFun , class Predicate , std::enable_if_t< std::is_invocable_r_v< bool, UnaryFun, Node >, bool > = true, std::enable_if_t< pred::is_pred_v< Predicate >, bool > = true>

void ufo::Tree< Derived, Dim, Blocks >::traverse	(	UnaryFun	f,
		Predicate const &	pred,
		bool	only_exists = `true`
	)		const

inline

Depth first traversal of the tree, starting at the root node. The function 'f' will be called for each node traverse. If 'f' returns true then the children of the node will also be traverse, otherwise they will not.

Parameters

f	The callback function to be called for each node traversed.
pred	Predicates that need to be fulfilled.
only_exists	Whether only existing nodes should be traversed.

Definition at line 1672 of file tree.hpp.

◆ treeInnerBlock() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

InnerBlock & ufo::Tree< Derived, Dim, Blocks >::treeInnerBlock ( pos_type block )

inlineprotected

Definition at line 2297 of file tree.hpp.

◆ treeInnerBlock() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

InnerBlock const & ufo::Tree< Derived, Dim, Blocks >::treeInnerBlock ( pos_type block ) const

inlineprotected

Definition at line 2303 of file tree.hpp.

◆ treeInnerBlockConst()

template<class Derived , std::size_t Dim, class... Blocks>

InnerBlock const & ufo::Tree< Derived, Dim, Blocks >::treeInnerBlockConst ( pos_type block ) const

inlineprotected

Definition at line 2309 of file tree.hpp.

◆ treeLeafBlock() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

LeafBlock & ufo::Tree< Derived, Dim, Blocks >::treeLeafBlock ( pos_type block )

inlineprotected

Definition at line 2279 of file tree.hpp.

◆ treeLeafBlock() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

LeafBlock const & ufo::Tree< Derived, Dim, Blocks >::treeLeafBlock ( pos_type block ) const

inlineprotected

Definition at line 2285 of file tree.hpp.

◆ treeLeafBlockConst()

template<class Derived , std::size_t Dim, class... Blocks>

LeafBlock const & ufo::Tree< Derived, Dim, Blocks >::treeLeafBlockConst ( pos_type block ) const

inlineprotected

Definition at line 2291 of file tree.hpp.

◆ valid() [1/2]

template<class Derived , std::size_t Dim, class... Blocks>

template<class NodeType , std::enable_if_t< is_node_type_v< NodeType >, bool > = true>

bool ufo::Tree< Derived, Dim, Blocks >::valid ( NodeType node ) const

inline

Checks if an index is valid.

Parameters

index the index to check

Returns: true if the index is valid, false otherwise.

Definition at line 1370 of file tree.hpp.

◆ valid() [2/2]

template<class Derived , std::size_t Dim, class... Blocks>

bool ufo::Tree< Derived, Dim, Blocks >::valid ( pos_type block ) const

inline

Checks if a block is valid.

Parameters

block the block to check

Returns: true if the block is valid, false otherwise.

Definition at line 1361 of file tree.hpp.

Member Data Documentation

◆ BF

template<class Derived , std::size_t Dim, class... Blocks>

constexpr TreeIndex::offset_type const ufo::Tree< Derived, Dim, Blocks >::BF = Data::BF

staticconstexprprotected

Definition at line 114 of file tree.hpp.

◆ Derived

template<class Derived , std::size_t Dim, class... Blocks>

friend ufo::Tree< Derived, Dim, Blocks >::Derived

protected

Definition at line 110 of file tree.hpp.

◆ is_node_type_v

template<class Derived , std::size_t Dim, class... Blocks>

template<class T >

constexpr bool const ufo::Tree< Derived, Dim, Blocks >::is_node_type_v = is_node_type<T>::value

inlinestaticconstexpr

Definition at line 188 of file tree.hpp.

◆ MODIFIED_ALL_SET

template<class Derived , std::size_t Dim, class... Blocks>

constexpr modified_type const ufo::Tree< Derived, Dim, Blocks >::MODIFIED_ALL_SET

staticconstexprprotected

Initial value:

=

static_cast<modified_type>(~(~0u << BF))

Definition at line 121 of file tree.hpp.

◆ MODIFIED_NONE_SET

template<class Derived , std::size_t Dim, class... Blocks>

constexpr modified_type const ufo::Tree< Derived, Dim, Blocks >::MODIFIED_NONE_SET = {}

staticconstexprprotected

Definition at line 123 of file tree.hpp.

The documentation for this class was generated from the following files:

lib/container/include/ufo/container/tree/tree.hpp
lib/container/include/ufo/container/tree_set.hpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Bounds

◆ Code

◆ code_type

◆ const_iterator

◆ const_nearest_iterator

◆ const_nearest_iterator_geom

◆ const_query_iterator

◆ const_query_iterator_pred

◆ const_query_nearest_iterator

◆ const_query_nearest_iterator_pred_geom

◆ ConstNearest

◆ ConstQuery

◆ ConstQueryNearest

◆ Coord

◆ coord_type

◆ Data

◆ depth_type

◆ Index

◆ InnerBlock

◆ Key

◆ key_type

◆ LeafBlock

◆ Length

◆ length_type

◆ modified_type

◆ Node

◆ offset_type

◆ Point

◆ pos_type

◆ Ray

◆ TraceResult

Constructor & Destructor Documentation

◆ Tree() [1/2]

◆ Tree() [2/2]

Member Function Documentation

◆ allLeaf() [1/3]

◆ allLeaf() [2/3]

◆ allLeaf() [3/3]

◆ allParent()

◆ ancestor()

◆ ancestorChecked()

◆ anyLeaf() [1/3]

◆ anyLeaf() [2/3]

◆ anyLeaf() [3/3]

◆ anyParent()

◆ begin() [1/2]

◆ begin() [2/2]

◆ beginNearest() [1/2]

◆ beginNearest() [2/2]

◆ beginQuery() [1/2]

◆ beginQuery() [2/2]

◆ beginQueryNearest() [1/2]

◆ beginQueryNearest() [2/2]

◆ block() [1/2]

◆ block() [2/2]

◆ bounds() [1/2]

◆ bounds() [2/2]

◆ branchingFactor()

◆ center() [1/2]

◆ center() [2/2]

◆ centerAxis() [1/2]

◆ centerAxis() [2/2]

◆ centerAxisChecked()

◆ centerChecked()

◆ child()

◆ childCenter()

◆ childChecked()
